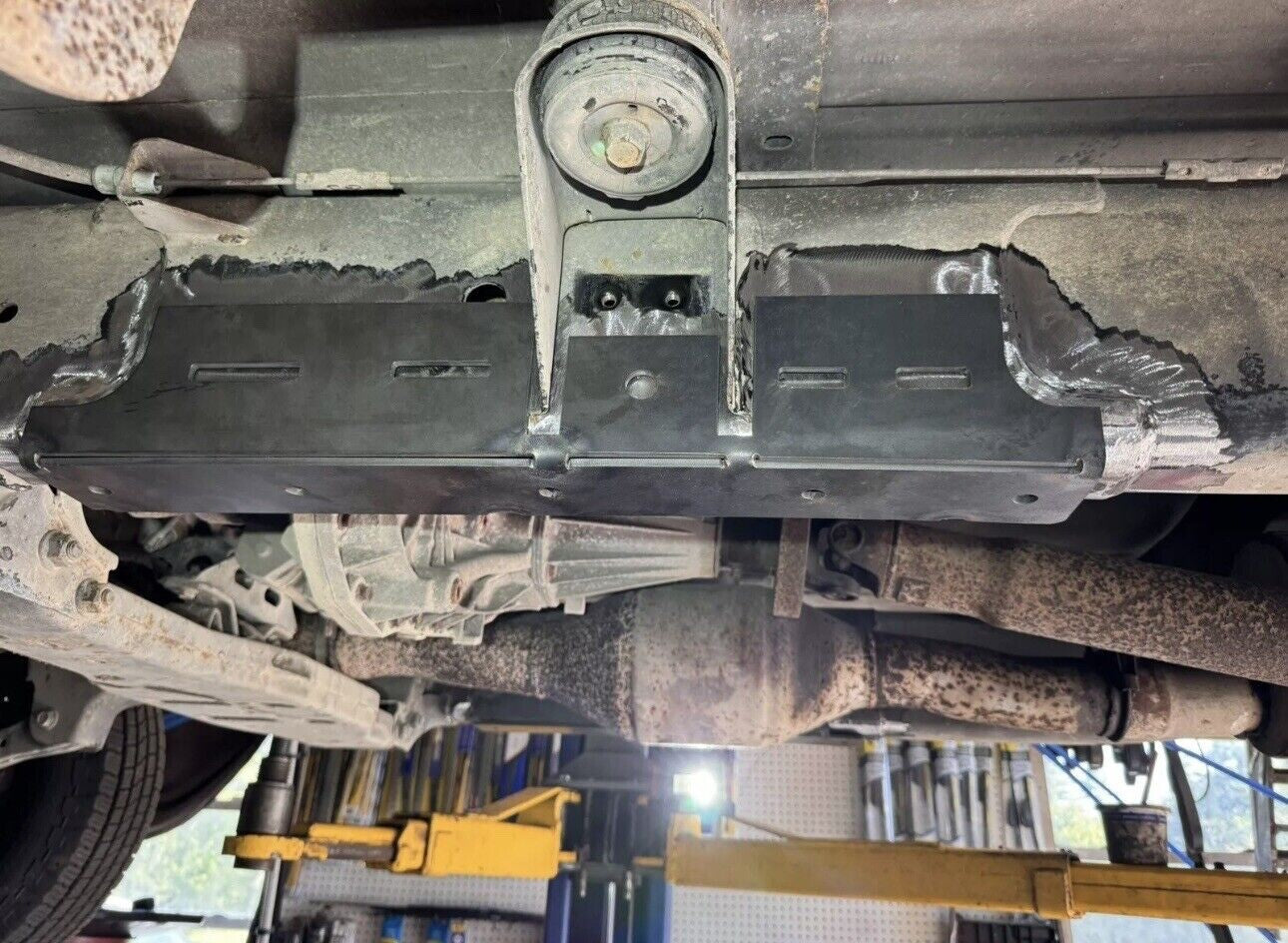

2003-2008 3rd gen Dodge Ram Frame repair for rusted out frames. This is the center section under the cab that commonly rust out and leave your frame in need of costly custom repair. There are no other options out there. I finally decided to break out fusion 360 and create a solution. Attached in the pictures are my own truck and how these panels fit.
Made of 3/16" mild steel. Ready to weld!

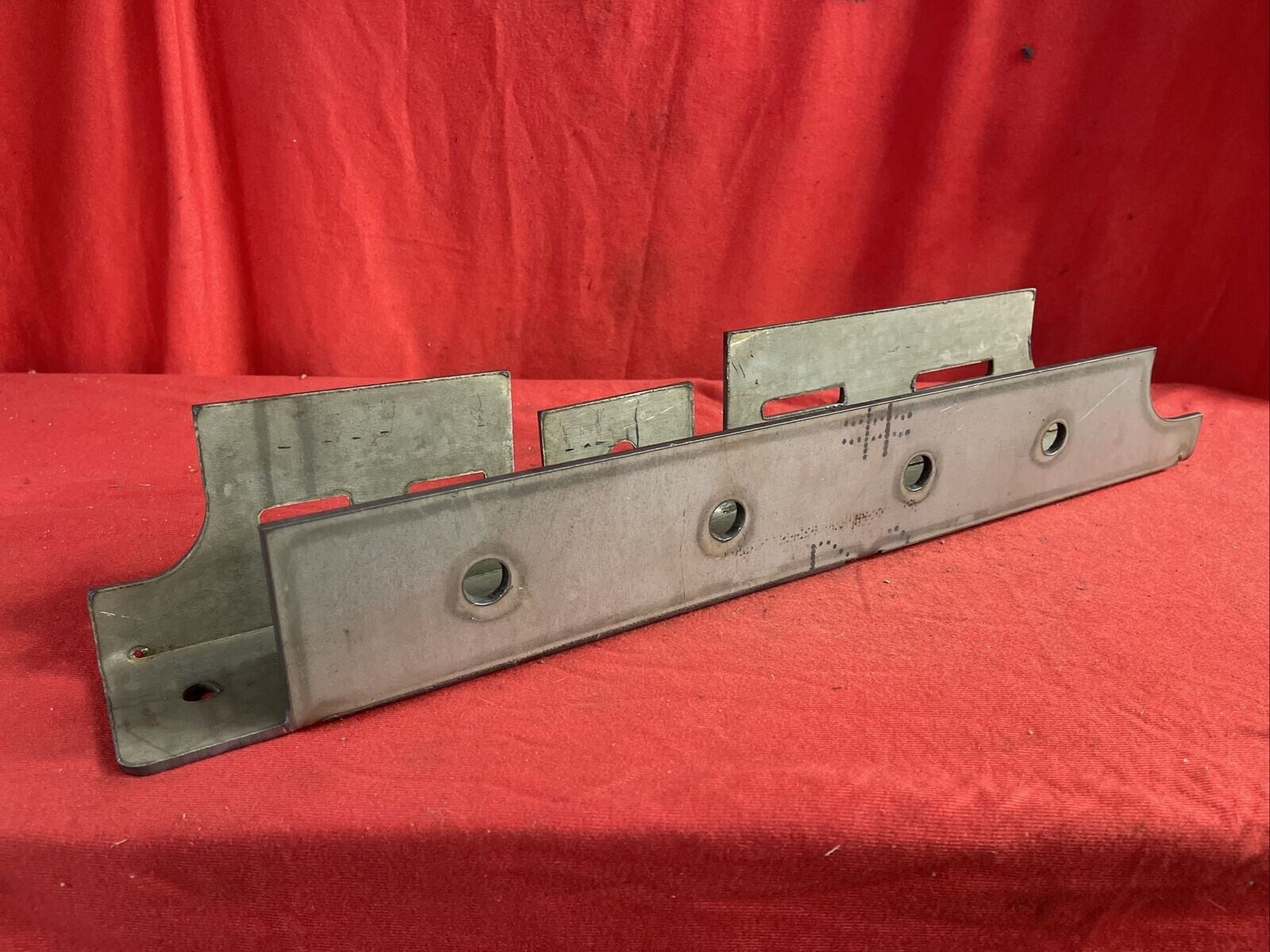

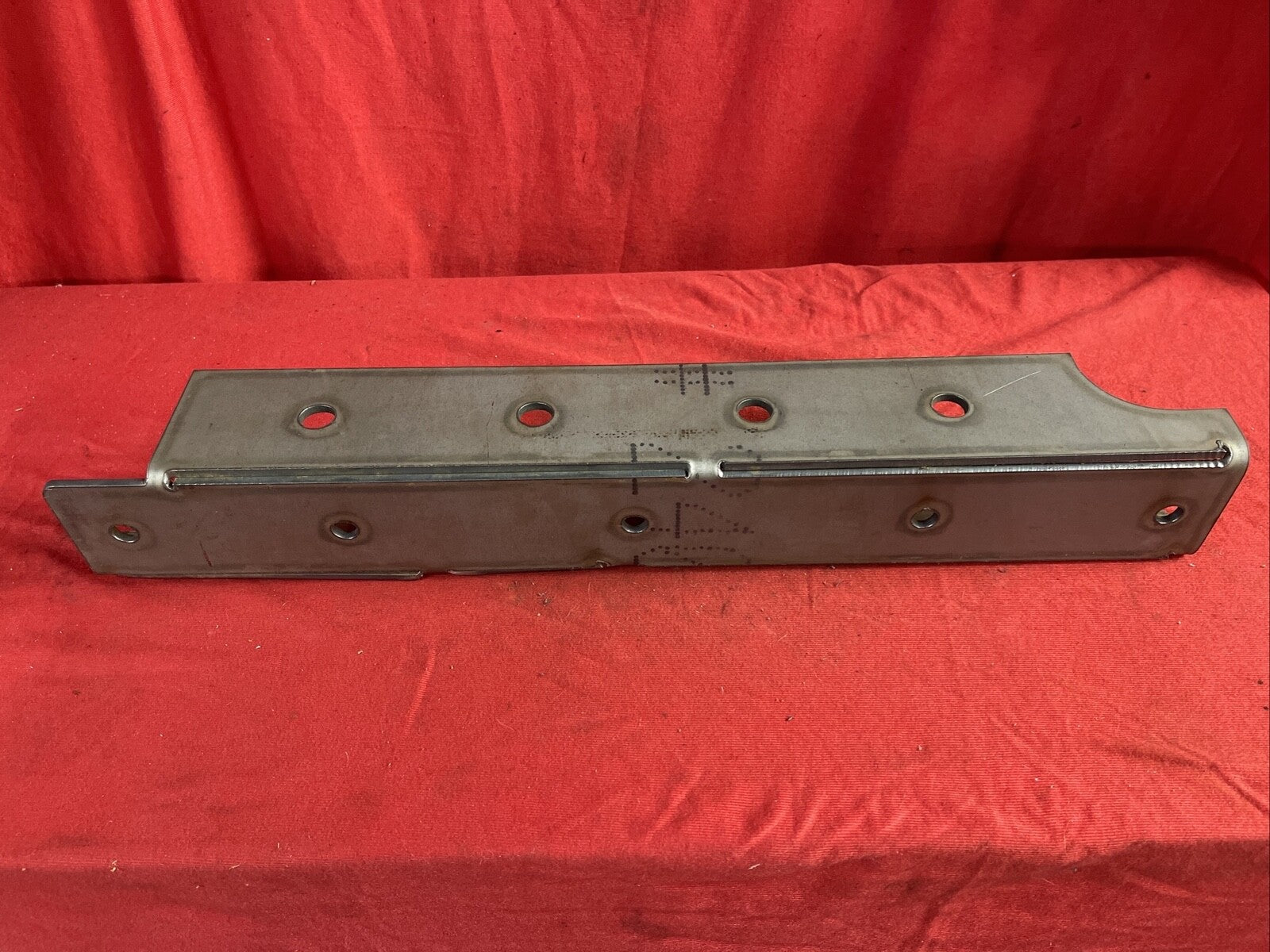

They will be shipped flat to you with instructions easily explaining what needs to be done with pictures included. If you bend the ears one way, it will be for driver side, if you bend them opposite it will be for passenger side. They are mirror image. You will need to grind your frame minimally to get the best fit possible. When you bend them correctly they will slide up and stay by themselves for you or your welder to install.
All pieces designed on fusion 360 and have gone through multiple revisions to be perfect, and then they were cut on a plasma table for precise cuts. This will fit perfectly on a crew cab short bed. Hoping to save some dodge frames out there and an easy solution for welders to get a job done quick and easy.
Fits perfectly on a 2003-2008 Dodge Ram crew cab short bed.
